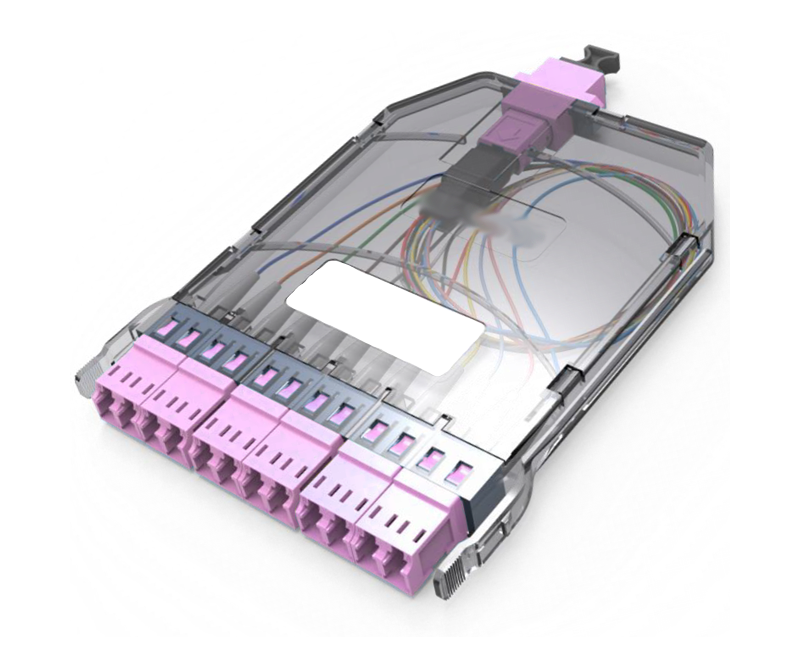

CentiCore™ 12 Fiber Ultra High Density MPO Cassette - 50/125µm Multimode OM4 - (x12) LC/UPC in Front to (x1) 12 Fiber MPO/UPC Standard in Rear

Fibertronics Inc. CentiCore™ HD Series Fanout Cassettes are engineered to deliver high-performance fiber termination and breakout solutions in ultra-dense environments. These modular cassettes feature MTP®/MPO rear connectivity and LC front interfaces, providing a seamless transition from trunk cables to individual fiber ports.

The plug-and-play design ensures quick installation, simplified cable management, and easy reconfiguration, making them ideal for dynamic network environments. All cassettes are fully compatible with CentiCore™ fiber housings, ensuring a reliable and integrated solution.

Fibertronics’ 12-Fiber Ultra High-Density MPO Cassettes offer a compact and efficient solution for breaking out a 12-fiber ribbon MTP/MPO connection into 12 individual LC connections. Designed for high-performance data center applications, these plug-and-play cassettes eliminate the need for splice-on pigtails, simplifying installation and enhancing reliability.

Each cassette features premium-grade, low-loss cable and connectors to ensure optimal signal performance. Available in a range of fiber types to suit diverse network requirements:

• Singlemode OS2 (9/125µm)
• Multimode OM1 (62.5/125µm)
• Multimode OM3 (50/125µm)
• Multimode OM4 (50/125µm)

Connector options include LC and LC/APC, with the flexibility to choose between male or female MPO connectors to fit your system’s configuration. Other types of custom port configurations are available to meet specific project needs.

Ideal for high-density environments, these MPO cassettes improve cable management and support scalable, modular infrastructure. As your connectivity demands evolve, simply swap out cassettes—no need to alter the existing trunk cabling. This makes upgrading both cost-effective and future-proof.

12 Fiber Ultra High Density MPO Cassette Features & Specifications

• MPO Cassette Housing
• Slim Cassette Design for High Density Applications
• 12 LC (Duplex) Port on the front
• MPO Gender: Male or Female
• Low Insertion and Return Loss
• HD Series Patch Panel Compatible
• Corning Multimode, OM4, 50/125
• RoHS Compliant
