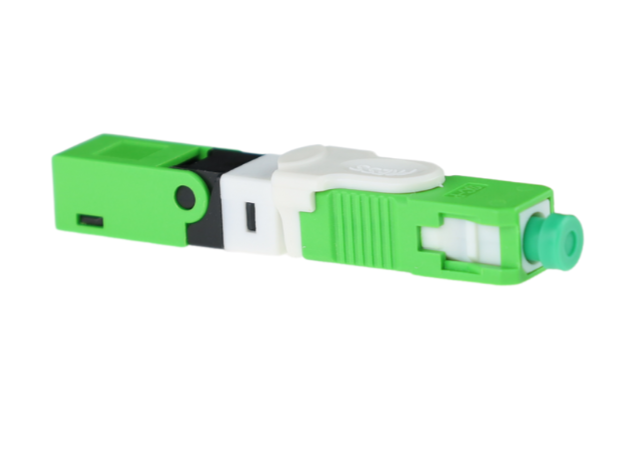

FieldConX™ SC/APC Field-Installable Connector - OS2 - Clip Type Drop Cable (Pack of 10)

Fibertronics Inc. FieldConX™ Field-Installable Connectors offer a fast, reliable solution for on-site fiber termination. These pre-polished mechanical connectors eliminate the need for epoxy and polishing in the field, significantly reducing installation time and labor costs.

Available in LC and SC formats, with UPC or APC polish options, FieldConX™ connectors support both multimode and singlemode fibers, making them ideal for a wide range of applications. With interchangeable boots, one connector is compatible with a multitude of cable diameters. Their quick termination process and low insertion loss ensure high-performance connectivity in demanding environments.

Designed for versatility, FieldConX™ mechanical connectors accommodate a variety of cable types and sizes, providing installers with a flexible, dependable termination solution. Ideal for field connections, quick repairs, and easy cable reconfiguration, these connectors offer unmatched convenience in dynamic installation settings.

Features & Specifications

• No need for epoxy or hand polishing
• Low insertion loss
• Interchangeable boots
• Connectors can be re-terminated at least 10 times
• Operating Temperature: -25 °C ~ +75°C
• Insertion Loss: Avg. ≤0.3dB, Max. ≤0.5dB
• Return Loss: Singlemode UPC ≥50dB, Singlemode APC ≥55dB, Multimode UPC ≥25dB
• Repeat Assembly: ≥10 times
• Tensile Strength: ≥30N (0.9mm Round Cable ≥5N)
• Service Life: ≥10 years
