Ultraplex™ T-Series 19" 1U Patch Panel - Sliding Tray

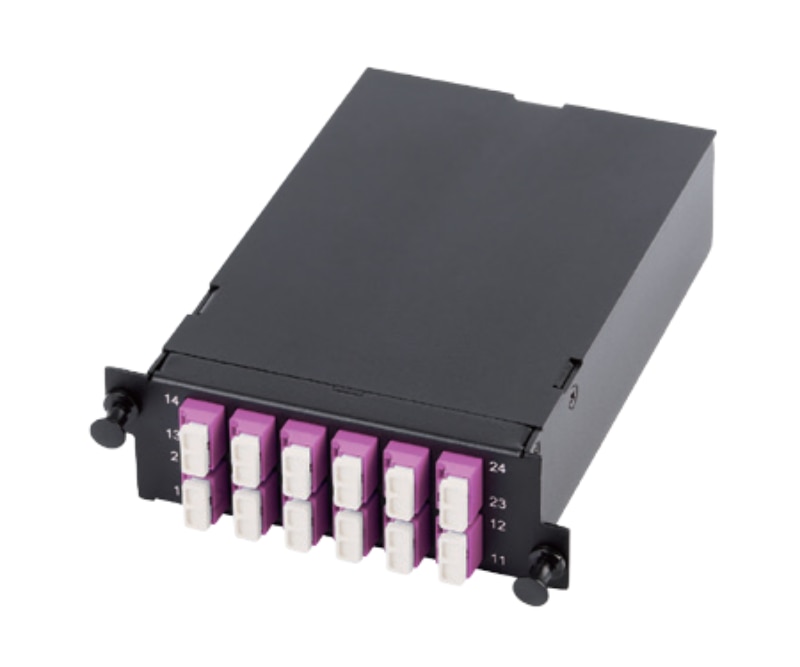

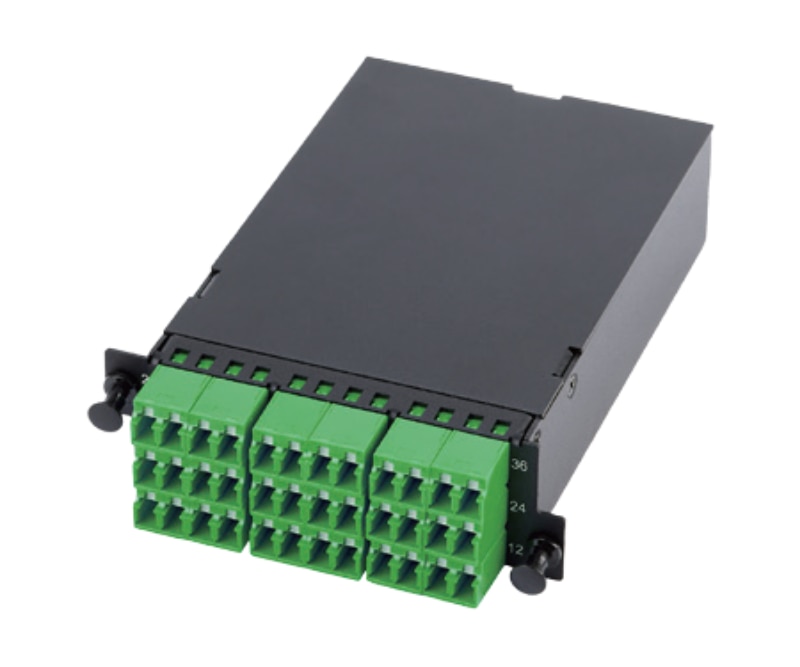

The Ultraplex™ T-Series is a 1U fiber optic patch panel with an internal sliding tray, for standard 19" racks. It holds 4 Ultraplex™ cassettes or adapter plates for up to 256 fibers, in SC, LC, MDC, or SN connector types. The tray extends the cassette or adapter plate section outward from the front of the panel for convenient access. A push-pull style locking mechanism holds the tray in place when it is not in use, preventing unintentional movement. It includes a removable top cover and a built-in front cabling bracket.

Choosing between Ultraplex™ series. The T-Series moves the internal tray only. For access to the full panel interior, the R-Series slides the entire panel forward on external side rails. If the panel does not need to move at all, the F-Series is the fixed enclosed equivalent, and the O-Series is the fixed open-top version.
