Consolidate 256 Fibers in 1U.
High-density fiber cassettes, adapter plates, and patch panels
built for scaling network environments.
The Ultraplex™ Advantages
The Ultraplex™ Series delivers high-density fiber patching in a compact 1U rack space. Support up to four modular cassettes or adapter plates for backbone cabling, distribution, and cross-connect applications in data centers and enterprise networks.
Maximum Density

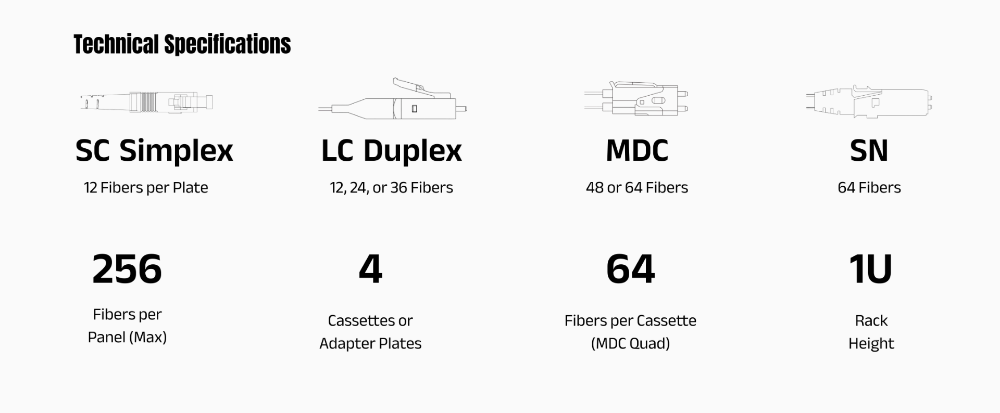

Mix and match up to four cassettes or adapter plates with SC, LC, MDC, or SN connectors. Support up to 256 fibers in a single 1U panel.
Deployment Flexibility
Choose from fixed, sliding tray, rail-mounted, or open-top patch panel configurations to match your access and installation needs.
Future-Proof
Tool-less installation keeps moves, adds, and changes simple, so the panel can support new connector types without being replaced.

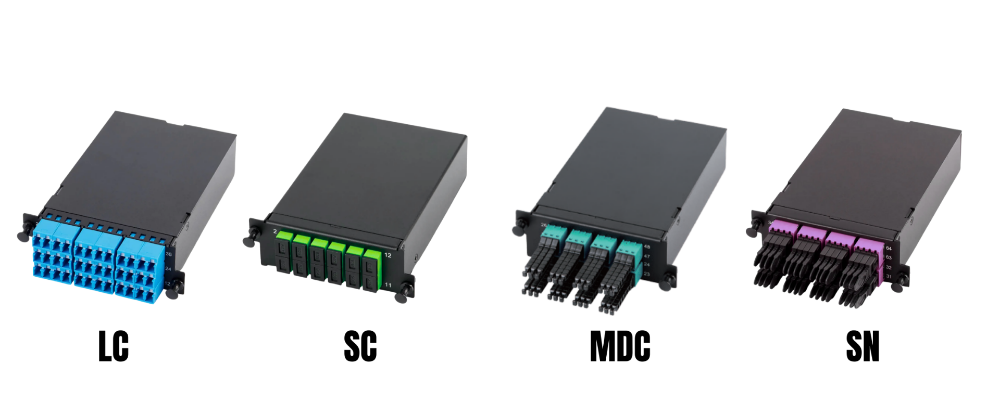

Ultraplex™ Cassettes
Factory-terminated Ultraplex™ cassettes deliver MPO-to-SC, LC, MDC, or SN breakout in OS2, OM3, or OM4 fiber modes. Each cassette occupies a single slot, with up to four fitting in every 1U. Tool-less installation simplifies deployment and reconfiguration.
SC
A lower fiber-count duplex option, well suited for cross-connect and distribution runs where SC hardware is already standardized. Supports up to 48 fibers per 1U.
LC
Scales from 12 to 36 fibers per cassette, a fit for enterprise network distribution and campus backbone runs. Supports up to 144 fibers per 1U.
MDC
Available in triple or quad layouts for maximum-density data center backbone cabling and storage area networks. Supports up to 256 fibers per 1U.
SN
A quad-only layout suited to high-density backbone and cross-connect deployments. Supports up to 256 fibers per 1U.

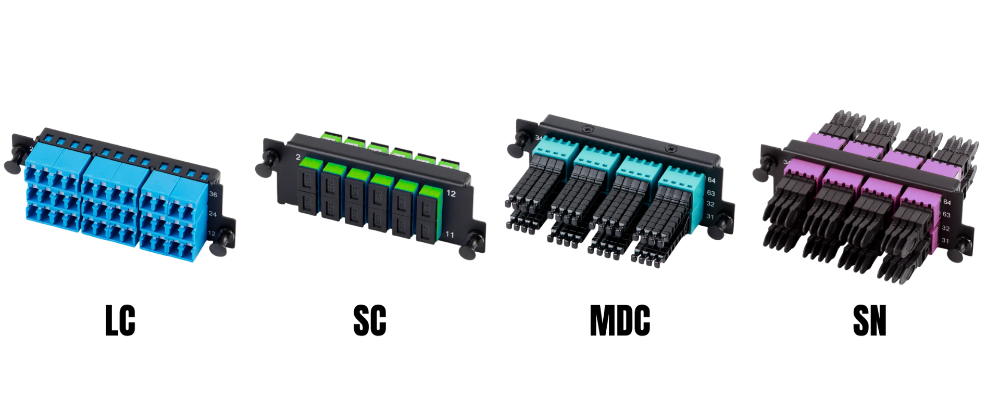

Ultraplex™ Adapter Plates
Ultraplex™ adapter plates are fully compatible with all Ultraplex™ Series patch panels, with up to four plates per 1U for scalable, high-density environments. Offered in blue, green, aqua, or magenta, each plate delivers reliable fiber connectivity with easy installation and maintenance.
SC
Supports up to 48 fibers per 1U.
LC
Supports up to 144 fibers per 1U.
MDC
Supports up to 256 fibers per 1U.
SN
Supports up to 256 fibers per 1U.

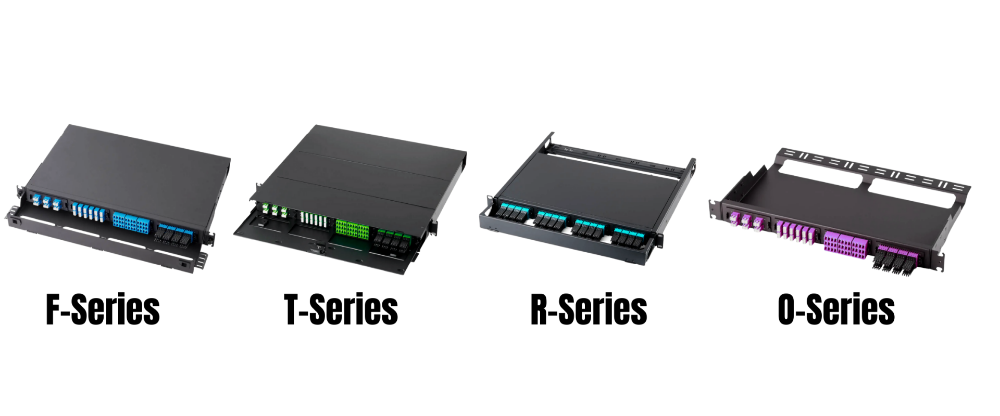

Ultraplex™ Patch Panels
Every Ultraplex™ patch panel is a 1U rack-mount platform that supports up to four cassettes or adapter plates, for up to 256 fibers in a single panel. Each slot can be configured independently, letting you choose the right connector type and density for each application. Available in fixed, sliding tray, rail-mounted, or open-top configurations, each panel is built from durable cold-rolled steel and aluminum alloy with a textured black powder coat finish, and offers universal 19" rack compatibility.
Ultraplex™ F-Series
The F-Series is a fixed patch panel that provides easy front access to fiber connections.
- Removable top cover for full access
- Front cabling bracket keeps routing clean and organized
- Ideal for static, low-maintenance deployments
Ultraplex™ T-Series
The T-Series features an internal sliding tray that extends the cassette or adapter plate section outward for convenient access.
- Push-pull locking mechanism keeps the tray secure when not in use
- Removable top cover with built-in front cabling bracket
- Well-suited for environments needing periodic access and cable management
Ultraplex™ R-Series
The R-Series uses external side rails to slide the entire patch panel forward from the rack.
- Full visibility and access to internal components without removing the panel
- Removable top cover and front cabling bracket
- Enhanced cable organization
Ultraplex™ O-Series
The O-Series is a lightweight, open-top, fixed patch panel with a minimalist design.
- Instant top-side access
- Front cabling bracket ensures organized routing
- Front cabling bracket ensures organized routing
Maximize the Rack Space You Already Have
Before you plan for more racks, find out what Ultraplex™ can do in the space you already have. Get in touch and we'll help you find the right configuration.
