24 Fiber MPO/UPC Standard Female to Female - Multimode OM4 - Plenum (OFNP) - Pin 1 to Pin 13
Product Overview

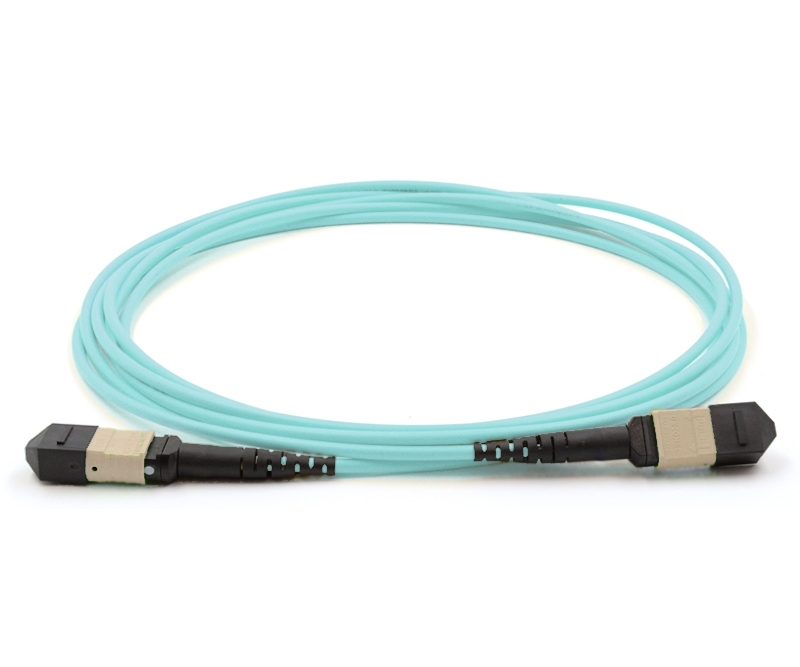

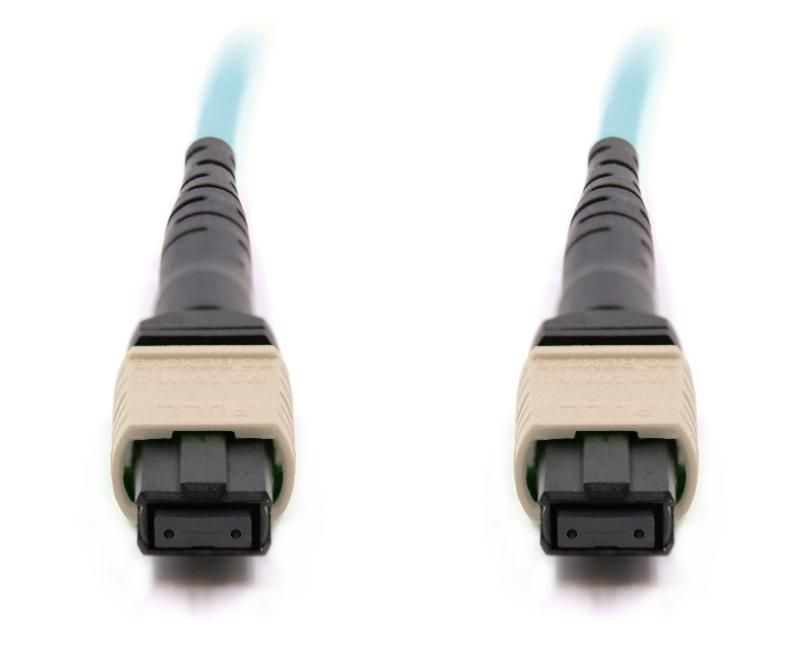

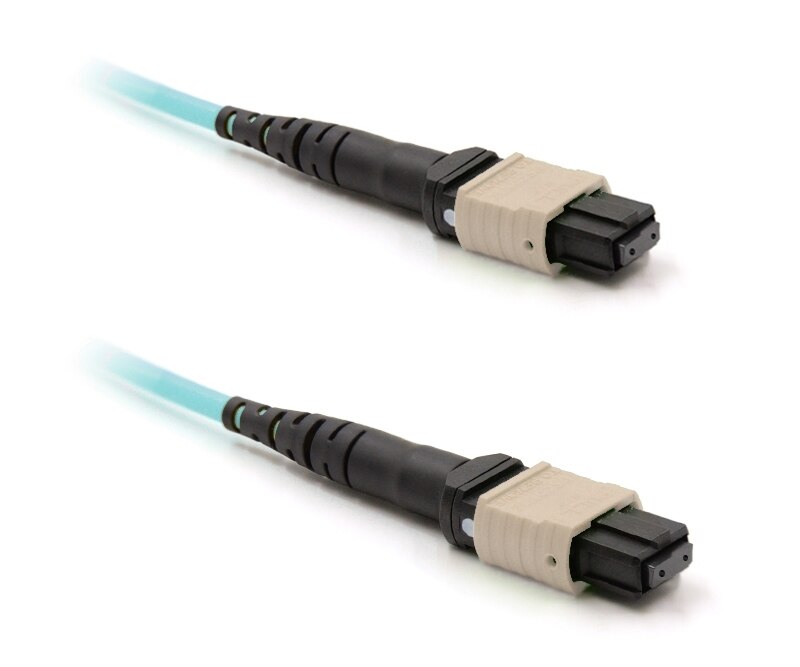

This 24-fiber MPO patch cable is built for high-density structured cabling deployments where maximizing channel capacity per MPO port is a priority. It uses OM4 laser-optimized 50/125µm multimode fiber, suited for extended-reach high-speed links. The UPC connector is polished to a convex dome end-face, creating a tight physical contact that eliminates air gaps and minimizes back reflection in multimode applications. Unpinned on both ends, this female-to-female cable is built to pair with pinned ports on either side of the link, such as MPO transceivers, bulkhead adapters, or cassette interfaces. This cable uses Row Flip polarity* providing a key-up to key-down orientation with a Pin 1 to Pin 13 mapping across the two-row connector interface. The 24-fiber count delivers twice the channel capacity of a 12-fiber assembly in the same physical footprint, making it the right choice when port density is a constraint and cable tray or conduit space is limited. This aqua jacket carries an OFNP listing, giving it flame-retardant and low-smoke-producing characteristics for use in ducts and plenums without added conduit. The standard ferrule meets a maximum insertion loss of ≤0.60 dB for general multimode network applications.
* Row Flip polarity is the Fibertronics designation for TIA-568.3-D Type-A:2-2.
Fibertronics builds fully custom MPO and MTP® cable assemblies. MPO is the general industry-standard connector; MTP® is a registered trademark of US Conec, engineered to tighter tolerances. Both are mechanically compatible and the terms are often used interchangeably. Either configuration is available to suit your application or procurement requirements. Learn more about MPO vs. MTP®.
If your project has requirements not covered by the standard configuration above, we build custom MPO patch cables to your exact specs. Contact us to get started. Every aspect of the assembly can be customized, including cable length, jacket type, fiber brand, connector gender, and polarity. For 24-fiber assemblies, we also support custom polarity configurations to your specified pin mapping, including non-standard row assignments.
BABA compliant assemblies available
We build Buy American, Build America compliant cable assemblies for government and federally funded projects. When ordering, please specify that you require a BABA compliant assembly. Learn more about our certifications.
Connector A | MPO/UPC Female |
Connector B | MPO/UPC Female |
Fiber Count | 24 Fibers |
Polarity | Row Flip, Pin 1 to Pin 13 |
Fiber Mode | OM4 50/125µm |
Wavelength | 850/1300nm |
Max Attenuation at 850nm | ≤3.0 dB/km |
Max Attenuation at 1300nm | ≤1.5 dB/km |
Insertion Loss (Typical) | ≤0.20 dB |
Insertion Loss (Max) | ≤0.60 dB |
Return Loss | ≥20 dB |
MPO Connector Durability | 500 times |
Cable OD | 3.0mm |
Cable Jacket | Aqua Plenum (OFNP) |
Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
Storage Temperature | -40°C to 75°C (-40°F to 167°F) |
