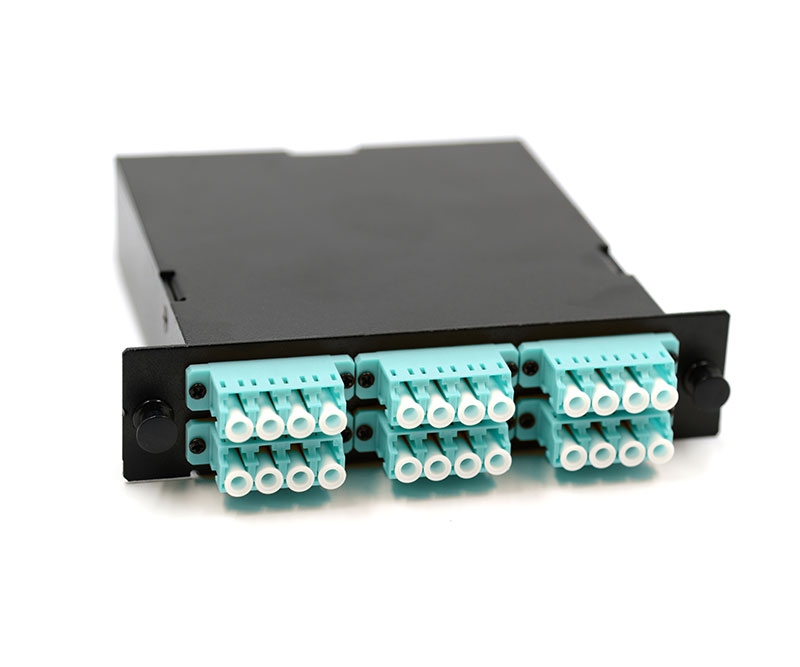

Optiwave™ 24 Fiber MPO Cassette - Multimode OM3 - (x24) LC/UPC and (x2) 12 Fiber MPO/UPC

The Fibertronics, Inc. Optiwave™ MPO Cassette features an LGX footprint and enables seamless breakout from two 12 fiber MPO/UPC connector at the rear to 24 LC/UPC connectors at the front. This cassette uses high-quality Corning OM3 multimode fiber in a ribbon configuration, broken out to 24 pre-terminated LC connections.

Inside, the unit contains a fan-out cable assembly for efficient signal routing. Designed for flexibility, the cassette fits into both vertical and horizontal LGX-Compatible MPO cassette holders.

Fibertronics, Inc. MPO cassettes provide a no-splice, plug-and-play solution, eliminating the need for splice-on pigtails. These cassettes support multiple fiber types including Singlemode OS2 (9/125μm), Multimode OM1 (62.5/125μm), Multimode OM3 (50/125µm), and others. They are available with a range of connector types: LC, LC/APC, SC, SC/APC, FC, FC/APC, ST, and more. Options for male or female MPO connectors are also available to suit specific network designs.

In data centers and modular networks, the Optiwave™ LGX-Compatible cassette enhances manageability and scalability. As connectivity demands evolve, cassettes can be quickly replaced without disturbing existing trunk cabling infrastructure.

Features & Specifications

• LGX-Style Pin Spacing
• Material: 16 Gauge Powder Coated Steel
• Front Interface : 24 LC/UPC (Duplex) Ports
• Rear Interface: (x2) 12 Fiber MPO/UPC Connector
• Fiber Type: Corning Multimode OM3
• Dimensions: 29mm x 129mm x 121mm
• Compatible with vertical and horizontal LGX-Style holders
• RoHS Compliant
