The Fibertronics, Inc. Optiwave™ LGX-LCQX-6 adapter plate with 6 LC quad adapters is designed to fit any standard rack mount and wall mount fiber optic enclosure that has a standard LGX chassis.
The Optiwave™ adapter plates have standard LGX dimensions of 13.03cm (5.130") x 2.92cm (1.150") with a center pin spacing of 11.80cm (4.646"). This standard size allows all Optiwave™ plates to easily fit all LGX style patch panels. Fibertronics Inc. offers adapter plates with all standard connector types.
Optiwave™ 24 Fiber LC/UPC Adapter Plate Features & Specifications
- LGX footprint with our standard 11.80cm (4.646") pin spacing
- Dimensions: 13.03cm (5.130") x 2.92cm (1.150")
- 16 Gauge Black Powder Coated Steel
- The Optiwave™ adapter plate is interchangeable allowing for use in a wide range of products
- Installation is made easy with Push/Pull Pins
- Connectors are screwed in to prevent rattling of adapters
- RoHS compliant
Standard Color Codes

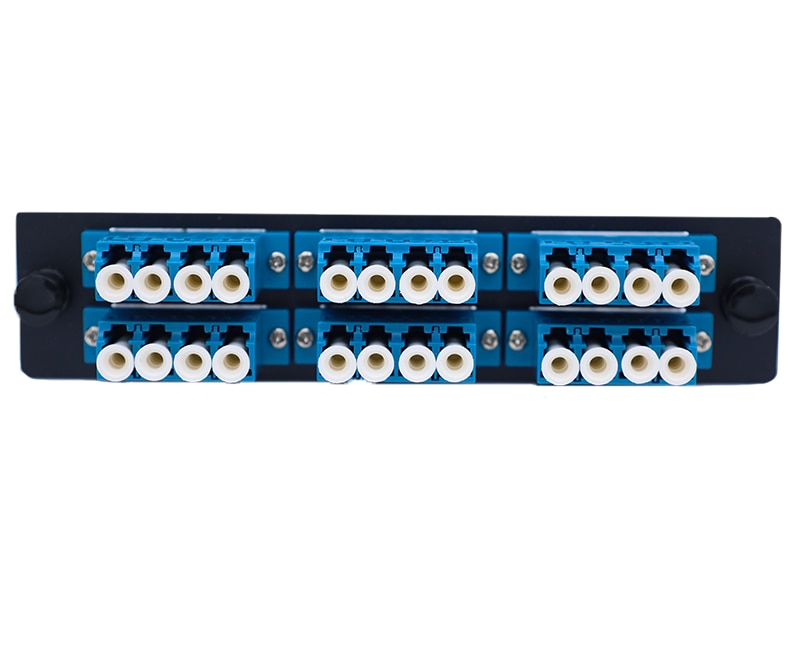

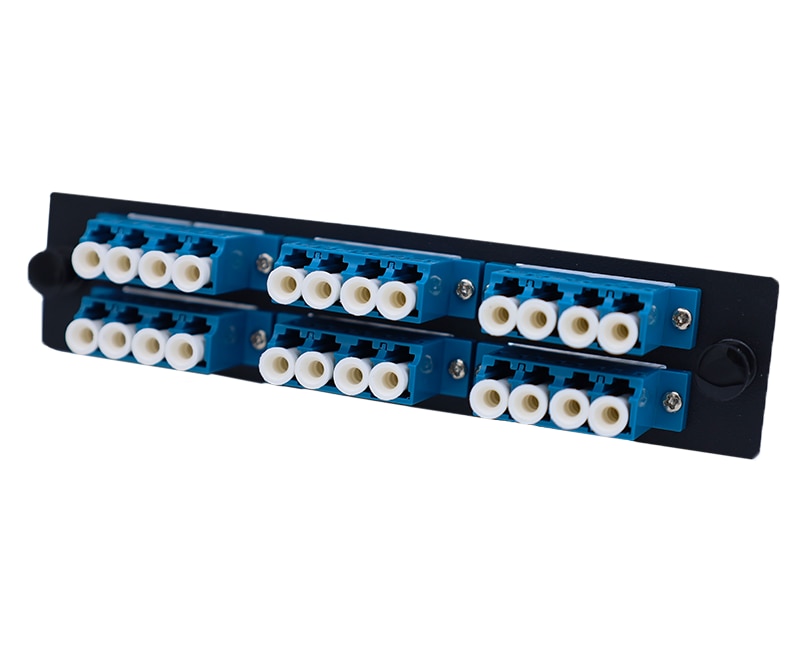

Blue: Singlemode OS2 UPC

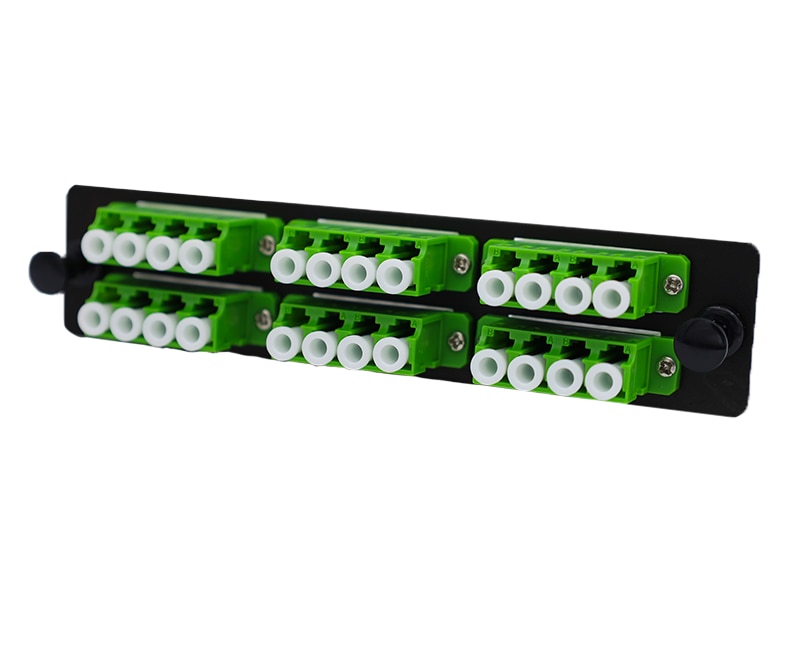

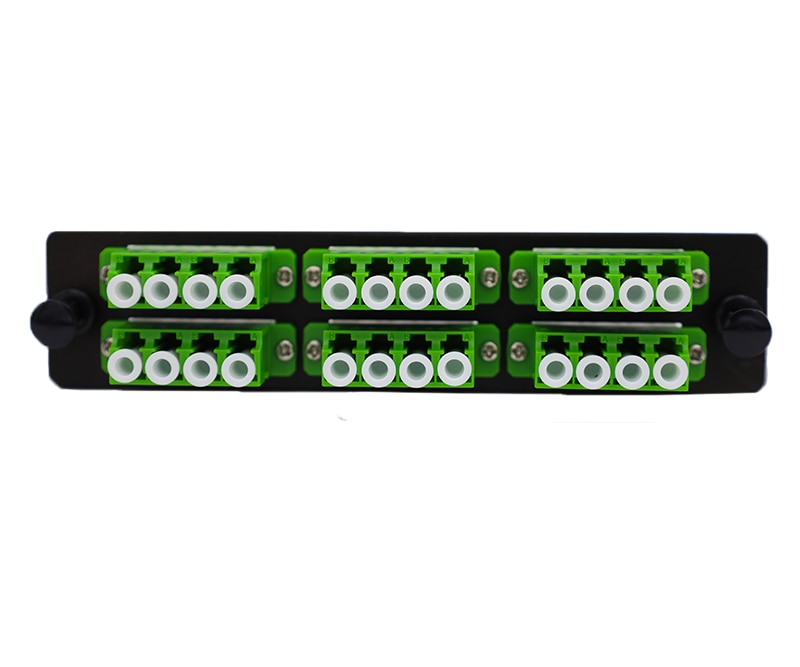

Green: Singlemode OS2 APC

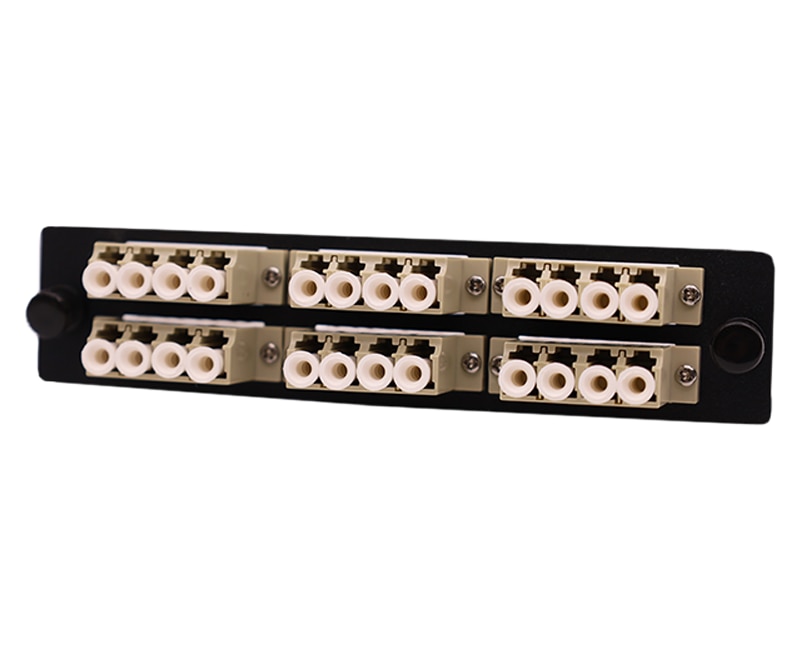

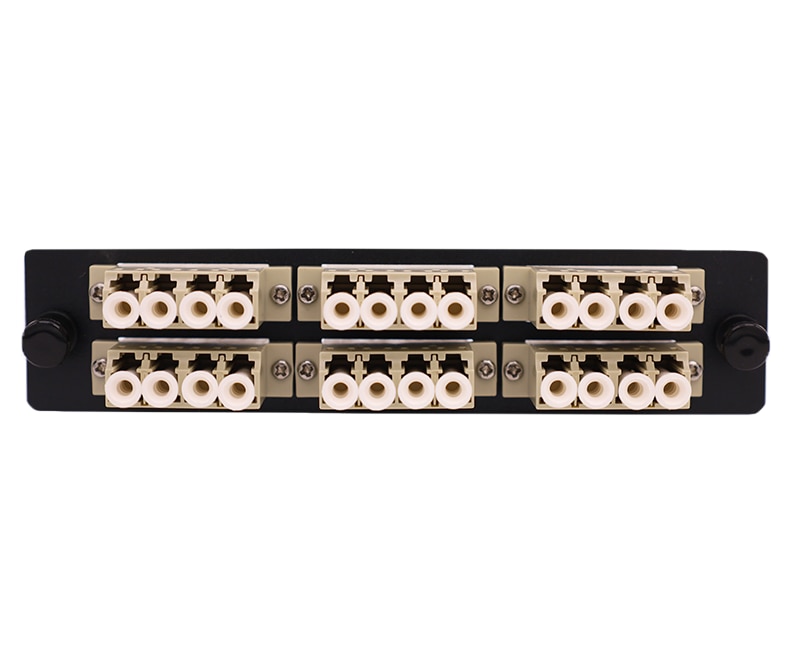

Beige: Multimode OM1 and OM2 UPC

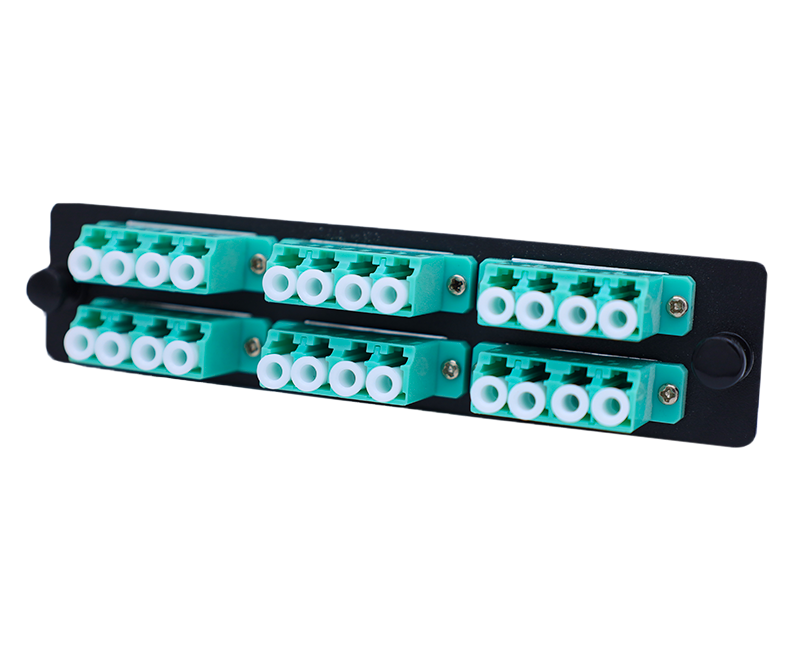

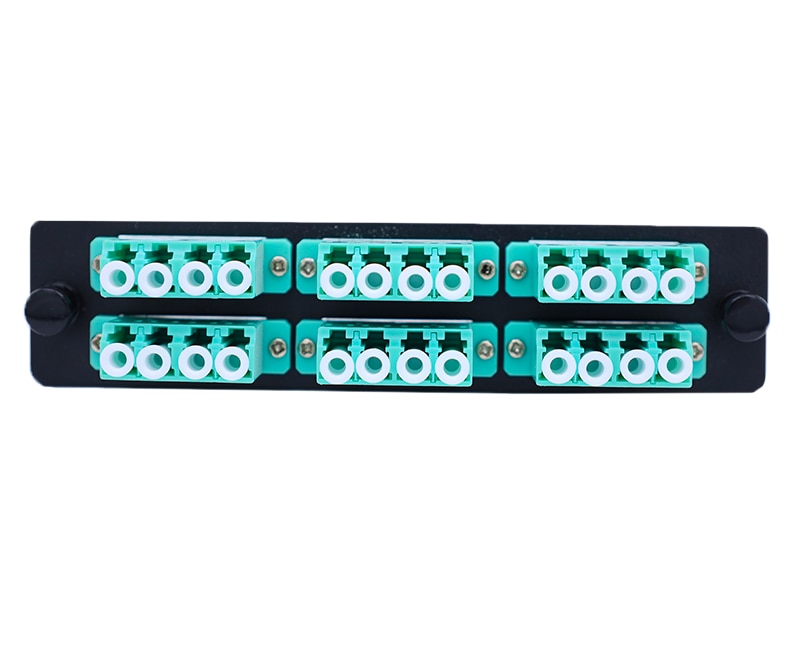

Aqua: Multimode OM3 and OM4 UPC

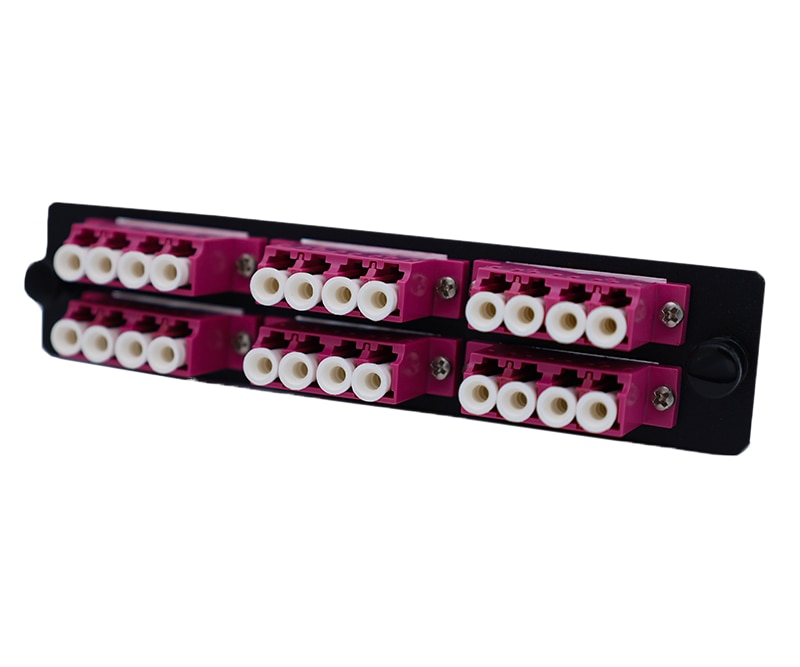

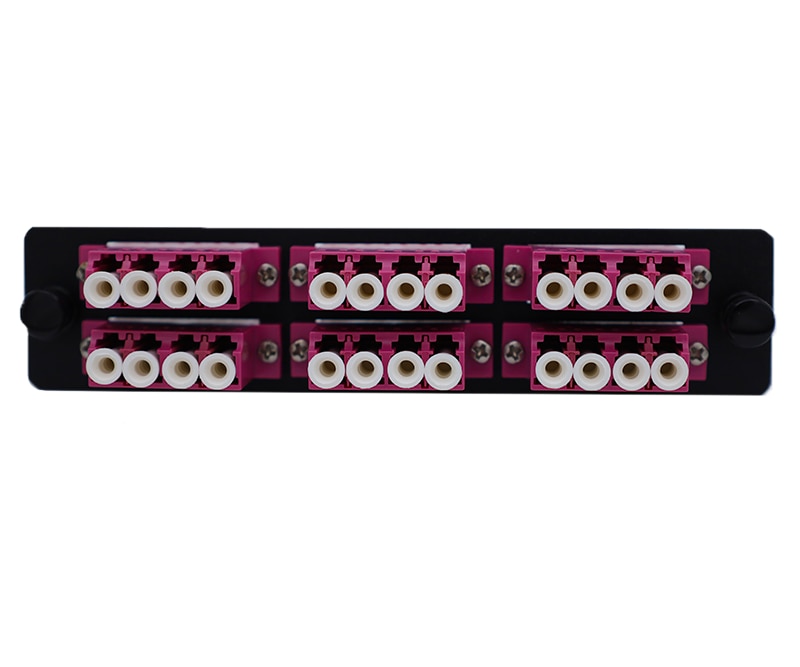

Magenta: Multimode OM5 UPC
Our other available Optiwave™ LGX Compatible Fiber Optic Adapter Plates include:
Fibertronics Inc. offers a wide range of custom Adapter Plate configurations to meet your exact specifications.
To request a custom solution, contact our sales team at: sales@fibertronics.com
