Fiber optic pigtails are short lengths of optical fiber featuring a pre-terminated connector on one end and exposed fiber on the other for field termination. They
provide low-loss integration between trunk cables and equipment through fusion splicing.

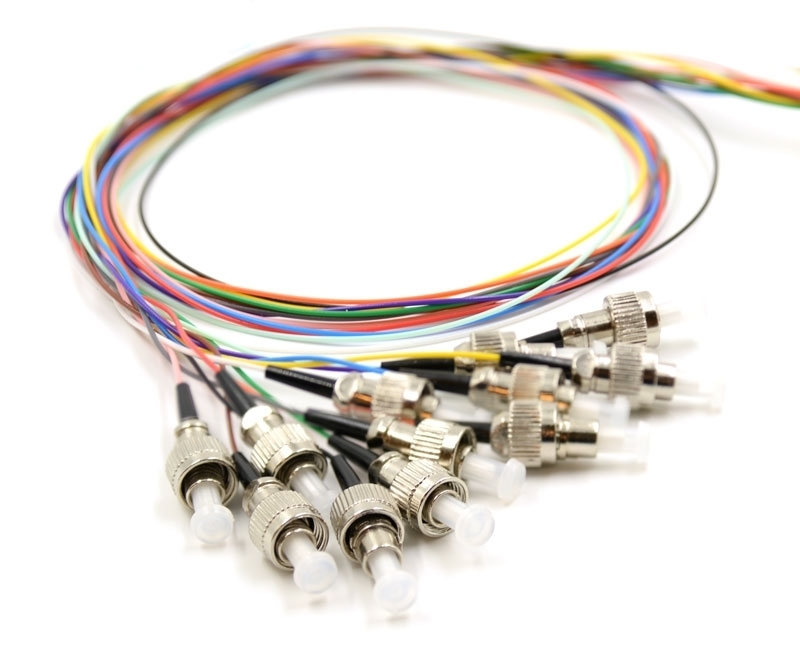

This is a high-quality multimode OM1 62.5/125µm fiber optic pigtail featuring FC/UPC connectors. Built with premium zirconia ferrules and durable composite hardware, these pigtails deliver excellent optical performance, durability, and consistency for modern network applications. Each pigtail undergoes rigorous quality testing to ensure it meets or exceeds industry standards and the most demanding performance specifications.
Fibertronics, Inc. offers simplex and duplex fiber optic pigtails in a variety of fiber counts (commonly 1, 6, and 12) and colors. Our pigtails are available with LC, SC, FC, and ST connectors, featuring a standard 0.9mm outer diameter cable. Both jacketed and unjacketed options are available.
Fibertronics, Inc. offers a variety of custom-made fiber optic pigtails Contact us to find out more.
FC/UPC Fiber Optic Pigtail Features & Specifications
- Class: Un-jacketed
- Fiber Count: 12
- Operating Temperature: -40°C~75°C
- Storage Temperature: -45°C~85°C
- Color-coded to easily identify in the field
- Low Insertion Loss
- Low Back Reflection Loss
- Ideal for use in Telecommunication Networks, LAN, WAN and Data Processing Networks
- Meets ISO 9001, RoHS, and Telcordia GR-326 Standard
Applications of the Various Fiber Optic Connectors
LC Connectors
These connectors are typically used in high-density applications due to their small size and their pull-proof design.
SC Connectors
SC connectors are non-optical disconnect connectors with a 2.5mm pre-radius-ed zirconia ferrule. They are ideal for quick patching of cables into rack or wall mounts due to their push-pull design.
FC Connectors
FC connectors feature a durable threaded coupling and are best suited for use within telecommunications applications and make use of non-optical disconnect.
ST Connectors
ST connectors make use of a semi-unique bayonet connection with a 2.5mm ferrule. They are great fiber optic connectors for field installation because of their reliability and durability.
