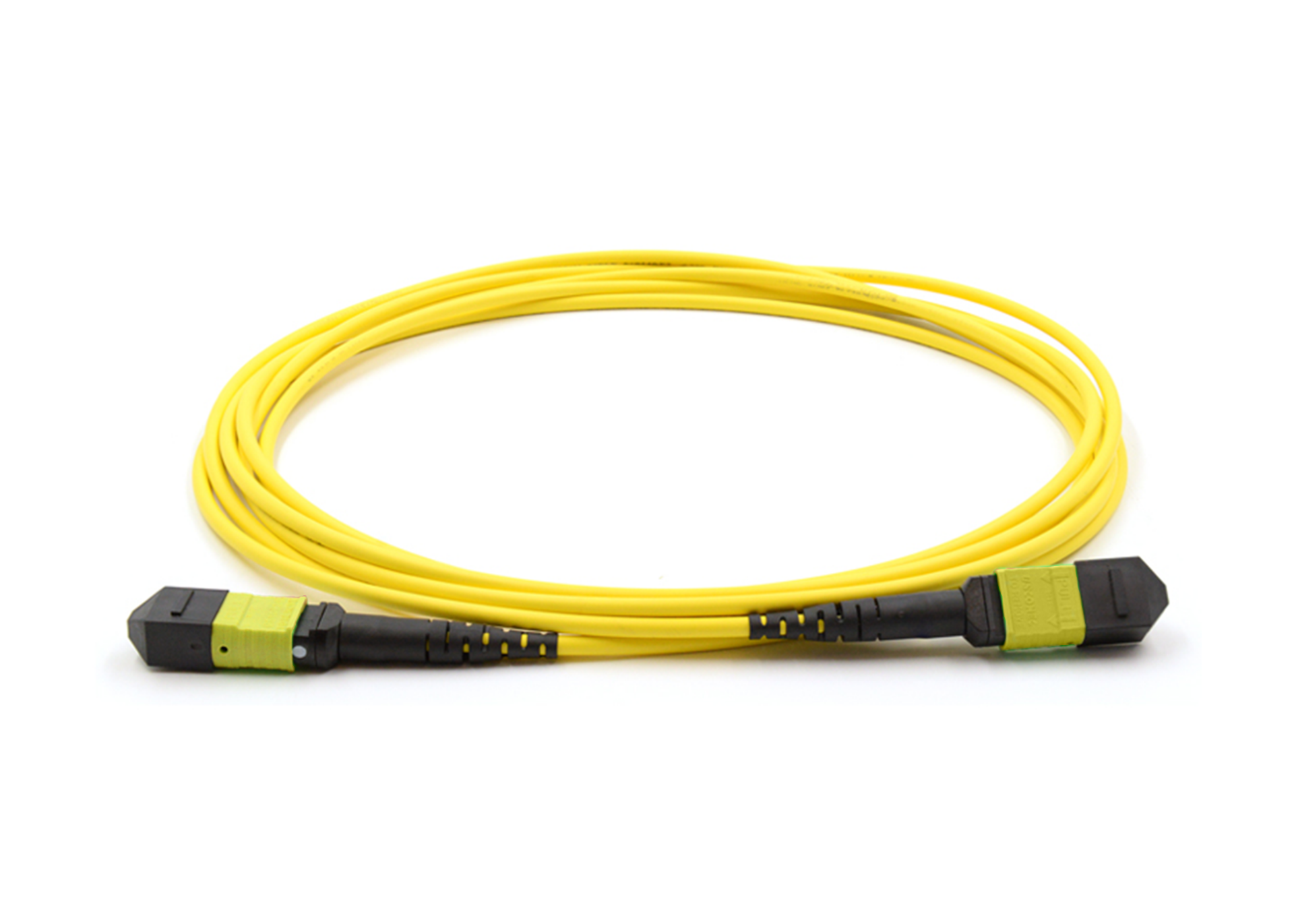

16 Fiber MPO/APC Low Loss Female to Female Custom Cable Assembly - 9/125µm Singlemode OS2 - Micro Distribution Yellow Plenum Rated - 2 Meters in Total Length - Method B Polarity

MPO connectors have answered the call for more bandwidth and more space efficiency. Our MPO to MPO Singlemode Fiber Optic Cable Assemblies have many unique features that are only available when purchasing through Fibertronics Inc.

Fibertronics Singlemode MPO cables use Corning® ClearCurve® laser optimized bend-insensitive fiber. This type of fiber allows for tighter bends in your cables, so you can route without worry. The fiber comes in the form of  3mm micro-distribution cable with a yellow plenum jacket, which is rated for riser and plenum areas. The micro-distribution format uses fiber in a loose tube jacket with protective Aramid yarn, allowing for more flexibility and smaller footprint than traditional ribbon cable.

A MPO fiber connector has a key on one of the flat sides added by the body, and the orientation of this key determines the cable’s polarity. MPO connectors also have a white dot or square on one side of the connector to denote fiber 1. This Corning SMF-28e+ Optical Fiber assemblies' MPO connectors have yellow bodies. Keep in mind singlemode cable is optimized for long range data transfer and multimode cables are designed for high-bandwidth short range scenarios.

16 Fiber MPO/APC Cable Features & Specifications

• 1x16 MT Ferrules
• High Density Physical Contact
• Available in Multimode UPC and Singlemode APC
• Extremely Low Lygroscopic Material for Environmental Stability
• Patented by USConec, Ltd.
• MPO-16 Adapter also Available
• High Temperature Stability
• Good Exchangeability

MPO connectors can provide 24 or more fibers in a single connector pushing up to and beyond 100Gbps data transmission. The terms MPO and MTP are often used interchangeably. We offer standard and low loss options.

The MPO gender interfaces are classified by the guide pins on the end of the connector and require 1 male and 1 female to mate properly. MPO connectors use a “barrel sleeve” adapter that simply holds one male and one female MPO “plug” together. The male guide pins fit into the female holes to ensure precise fiber alignment. It is never advised to mate two female connectors two male connectors due to both insertion loss and pin damage respectively. The standard for cables is female to female. However, when you need to extend a cable or connect two cables, you will need a male to female cable and an adapter.

At Fibertronics Inc. we offer custom MPO cable assemblies. We can build these to your complete individual specifications, including using a different brand of fiber, different type of jacket, or even customer-supplied cable.

**Please keep in mind that MPO cables work best with loose fibers, so tight-buffered fibers may not be suitable for this.
