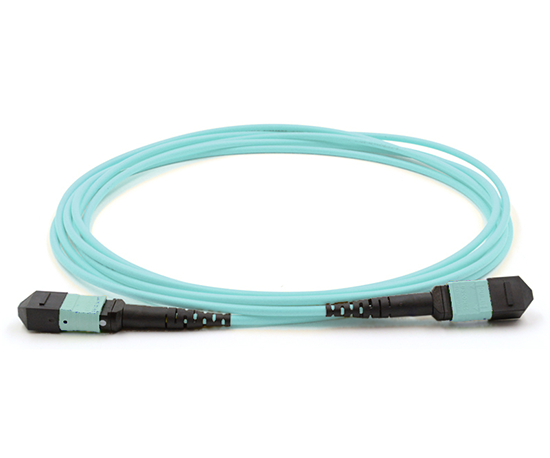

12 Fiber MPO/UPC Low Loss Male to Male Custom Cable Assembly - 50/125µm Multimode OM4 - Micro Distribution Aqua Plenum Rated - Method B Polarity

MPO connectors have answered the call for more bandwidth and more space efficiency. This MPO to MPO Multimode Fiber Optic Cable Assembly has many unique features that are only available when purchasing through Fibertronics, Inc. Multimode fiber variants are designed with high-bandwidth, short range optimization in mind.

Corning OM4 Corning ClearCurve ultra-bendable, laser-optimized™ multimode optical fiber 50um OM4, Plenum (OFNP), Aqua, 3mm Round, Micro-distribution cable. Aqua body MPO connector. (Jacketed Ribbon or Bare Cable is optional)

12 Fiber MPO/UPC Cable Features & Specifications

• Reduced Insertion Loss by up to 50%
• High Durability
• High Temperature Stability
• Good Exchangeability

MPO connectors are able to provide up to 24 or more fibers in a single connector pushing up to and beyond 100Gbps data transmission. The terms MPO and MTP are often used interchangeably. MPO and MTP are available with Standard or Low Loss options.

Fibertronics 12 Fiber, OM4, MPO cables use Corning ClearCurve laser optimized bend-insensitive fiber. This type of fiber allows for tighter bends in your cables. The fiber comes in the form of 12 fiber 3mm micro-distribution cable with an aqua plenum jacket, which is rated for riser and plenum areas. The micro-distribution format uses 12 fibers in a loose tube jacket with protective aramid yarn, allowing for more flexibility and a smaller footprint than traditional ribbon cable.

We can also build these to your custom specifications, including using a different brand of fiber, different type of jacket, or even customer-supplied cable.

Please keep in mind that MPO cables work best with loose fibers, so tight-buffered fibers may not be suitable for this.
