12 Fiber MPO/UPC Standard Male to (x12) ST/UPC - Multimode OM1 - Plenum (OFNP)

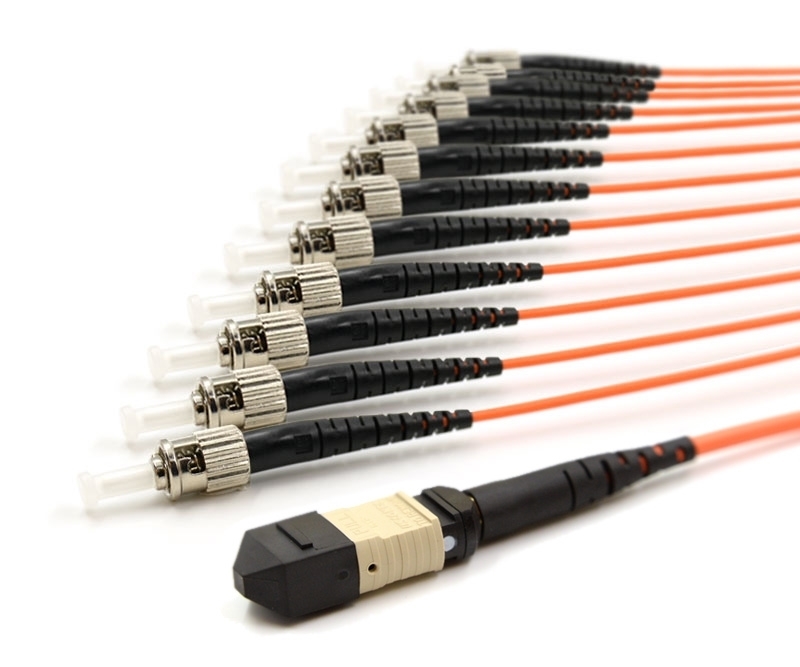

This 12-fiber MPO fanout cable connects a single 12-fiber MPO/UPC connector to 12 individual simplex ST/UPC legs. It is constructed with OM1, a LED-based 62.5/125µm multimode fiber, offering a cost-effective option for maintaining and extending existing infrastructure.
The male MPO/UPC connector with guide pins mates with the female side of the corresponding MPO interface, found on cassettes, adapter panels, or other equipment configured with female ports. Each ST/UPC leg is individually numbered to correspond with its fiber position in the MPO connector, simplifying installation and troubleshooting.
The 3mm trunk transitions to a 2mm micro-distribution breakout at 0.5 meters. The orange plenum jacket meets NEC Article 770 and OFNP requirements for installation in air-handling spaces.
Fibertronics builds fully custom MPO and MTP® cable assemblies. MPO is the general industry-standard connector; MTP® is a registered trademark of US Conec, engineered to tighter tolerances. Both are mechanically compatible and the terms are often used interchangeably. Either configuration is available to suit your application or procurement requirements. Learn more about MPO vs. MTP®
If your project has requirements not covered by the standard configuration above, contact us and we'll build to your exact specs. Every aspect of the assembly can be customized, including fiber count, cable length, breakout length, jacket type, fiber type, connector gender, and fanout connector type.
BABA compliant assemblies available
We build Buy American, Build America compliant cable assemblies for government and federally funded projects. When ordering, please specify that you require a BABA compliant assembly. Learn more about our certifications.
Connector A | MPO/UPC Male |
Connector B | (12x) ST/UPC Simplex |
Fiber Count | 12 Fibers |
Fiber Mode | OM1 62.5/125µm |
Wavelength | 850/1300nm |
Max Attenuation at 850nm | ≤3.5 dB/km |
Max Attenuation at 1300nm | ≤1.5 dB/km |
Performance | Standard |
MPO Insertion Loss (Typical) | ≤0.20 dB |
MPO Insertion Loss (Max) | ≤0.60 dB |
MPO Return Loss | ≥20 dB |
MPO Connector Durability | 500 times |
Cable OD | 3.0mm |
Breakout OD | 2.0mm |
Breakout Length | 0.5 meter |
Cable Jacket | Orange Plenum (OFNP) |
Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
Storage Temperature | -40°C to 75°C (-40°F to 167°F) |
