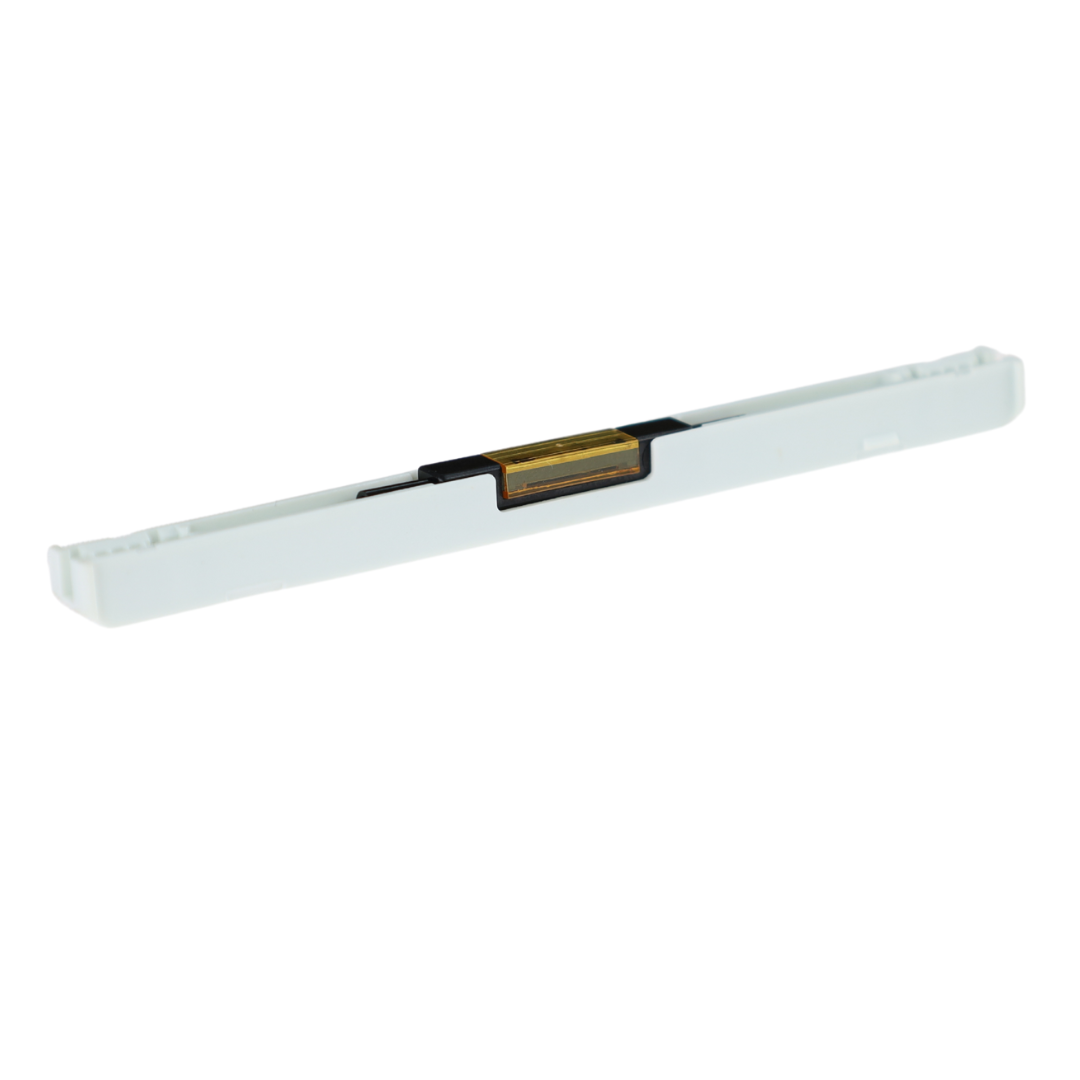

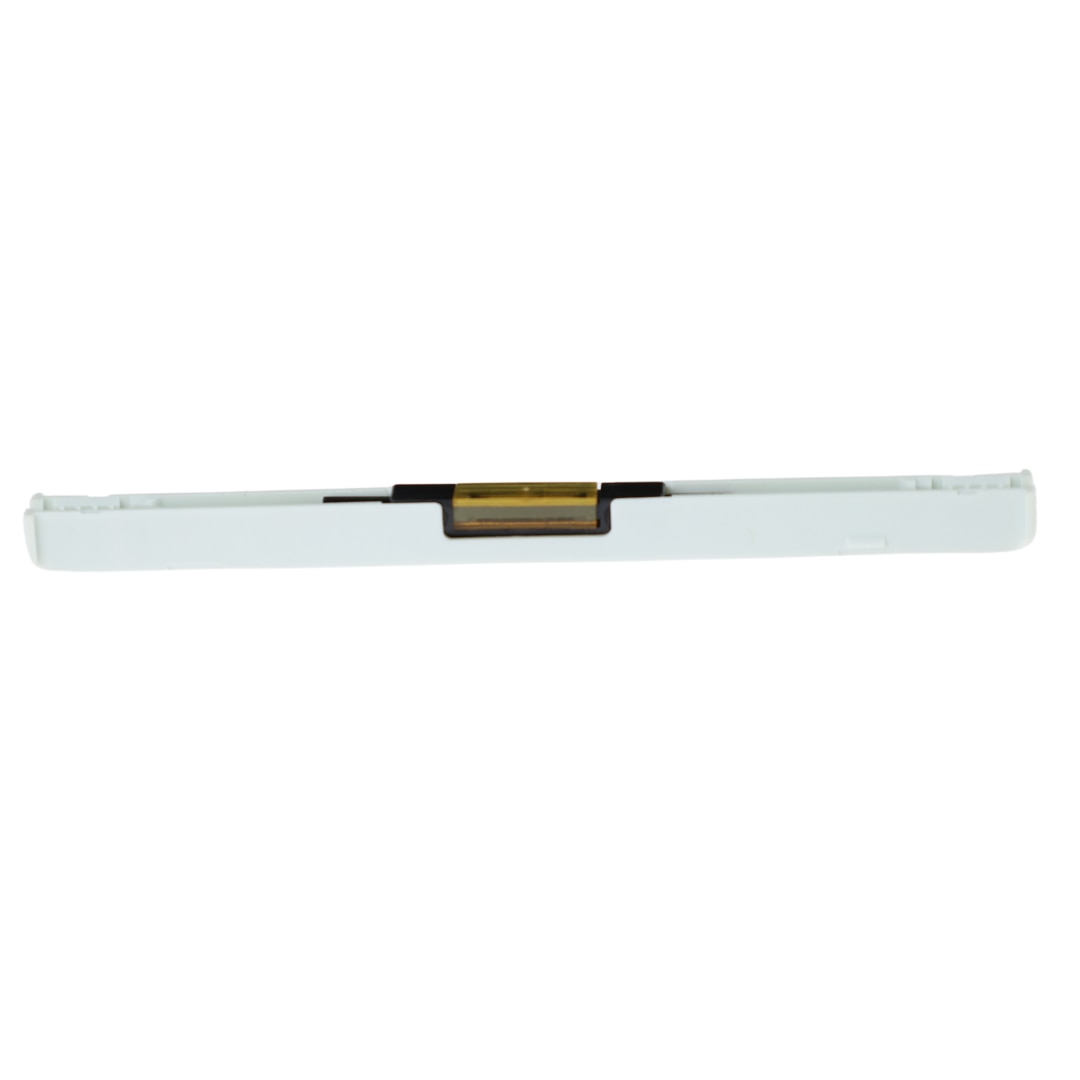

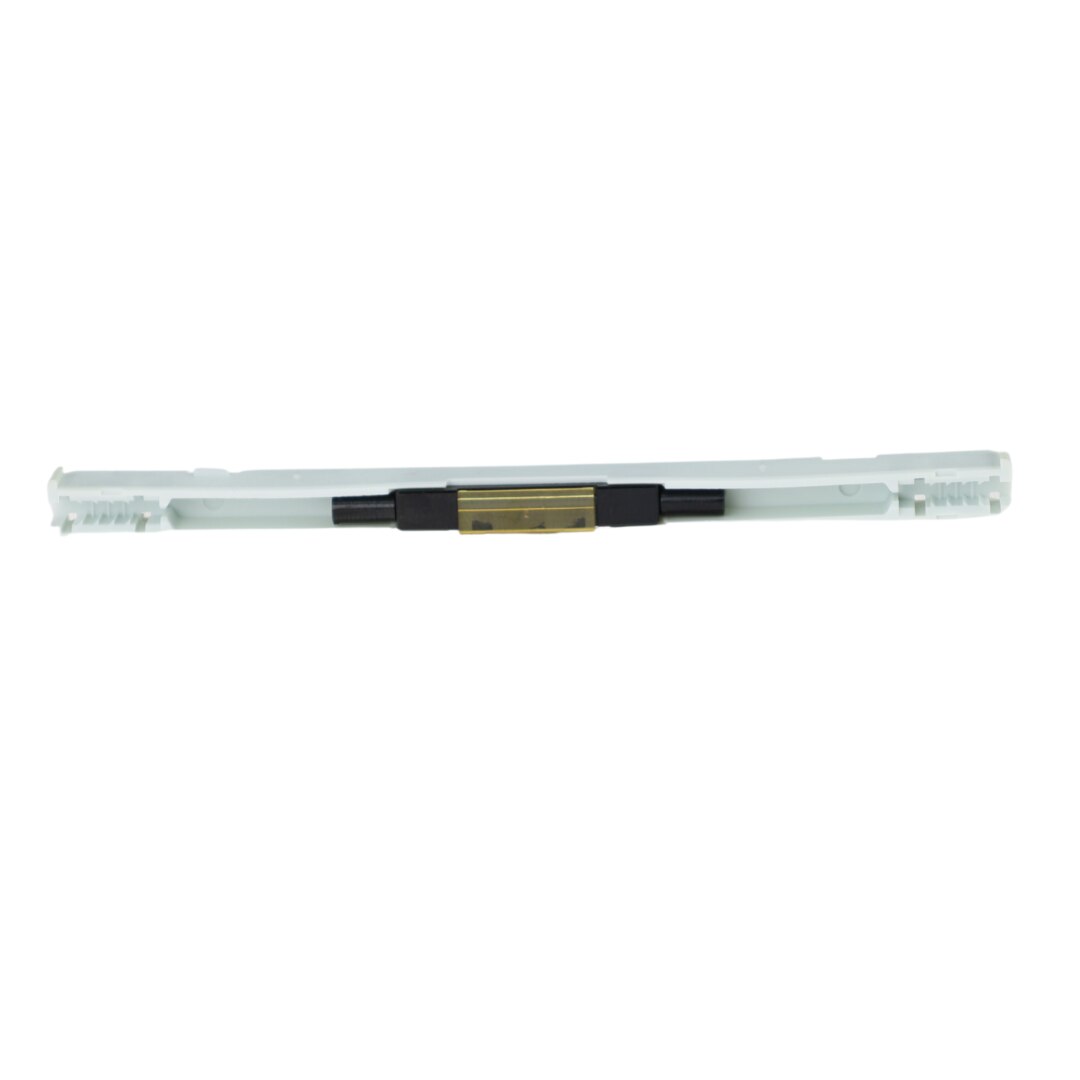

FieldConx™ Mechanical Splicer for 2.0*3.0mm Drop Cable

Fibertronics FieldConx™ Mechanical Splice offers a quick, reliable solution for splicing 2.0*3.0mm drop cable directly in the field—without the need for fusion splicing equipment. This tool-less, pre-aligned mechanical splice enables precise fiber-to-fiber alignment through a V-groove design, ensuring low insertion loss and high-performance signal continuity.

Designed to simplify field installations and emergency repairs, the FieldConx™ splice supports both singlemode and multimode fibers and provides a stable, low-loss connection point for FTTx, LAN, and premise network applications. A built-in splice verification window allows for visual confirmation of proper fiber placement, and the integrated alignment mechanism guarantees repeatable, dependable splices every time.

Compact, efficient, and cost-effective, FieldConx™ is ideal for fast restoration, fiber rearrangements, and low-volume installations where fusion splicing is impractical or unavailable

Mechanical Splicer Features & Specifications:

• Metal V-groove, precise alignment, high reliability, excellent performance
• Cable: 3.0*2.0mm Drop Cable
• Product Size: 90mm x 8mm x 7mm
• Fiber: G657Al, G657A2, G657B3, Fiber Diameter 125µm, Coating Diameter 250µm
• Operating Temperature: -25 °C ~ +75 °C
• Insertion Loss: Avg. ≤0.2dB, Max. ≤0.5dB
• Return Loss: Avg. ≥45dB, Min. ≥40dB
• Repeat Assembly: ≥3 times
• Tensile Strength: ≥ 30N
