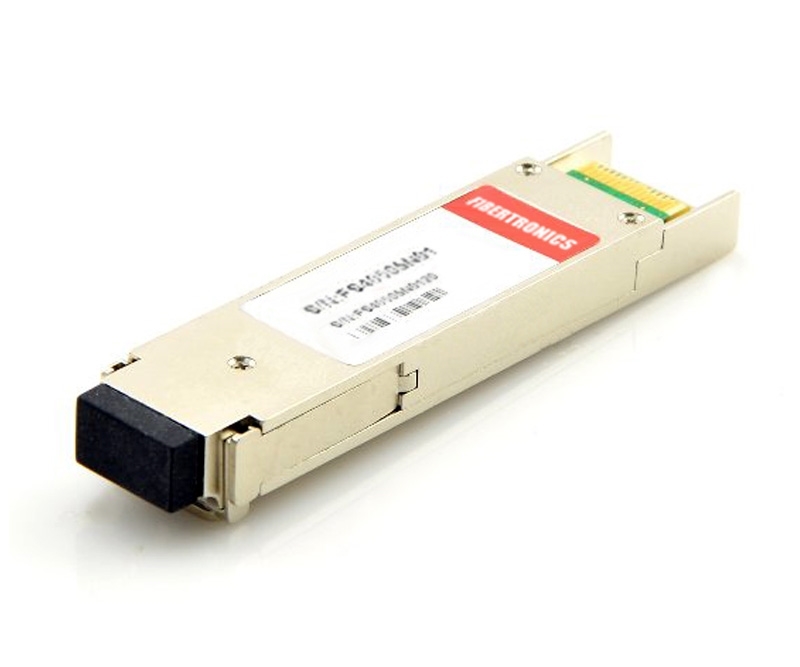

Generic XFP-10G-ZR Compatible 10GBASE-ZR XFP

Generic XFP-10G-ZR Compatible 10GBASE-ZR XFP
Item No: XFP-SM-10G-55-80K
MFG Part#: XFP-SM-10G-55-80K
9999 In Stock
Manufacturer: Fibertronics
$920.00

Generic 10GBASE-ZR XFP Compatible 10Gbps Module - SMF Singlemode 1550nm Wavelength for up to 80km

 This high-quality Generic 10GBASE-ZR XFP Compatible DOM transceiver module.  A cost-effective solution that provides high bandwidth and transmission rates over short distances. Each transceiver is 100% optically inspected and tested for compatability before shipping.





Product Features

  • 100% Optically Inspected and Tested to be compatible.
  • SMF, 1550nm, 80km, LC, DOM
  • 10GBASE-ZR XFP Optics
  • ROHS Compliant.





Product Specifications

Generic Compatible 10GBASE-ZR XFP
Vendor Name Fibertronics
Form Type XFP
Max Data Rate 11.1Gbps
Wavelength 1550nm
Distance 80km
Connector Interface LC Duplex
Optical Component type EML Laser 1550nm
Mode SMF Singlemode Fiber
Digital Optical Monitoring (DOM) Supported Yes
TX Power 0~5dBm
Receiver Sensitivity < -26dBm
Temperature Range -5 to 75°C (23 to 167°F)

Generic 10GBASE-ZR XFP Compatible 10Gbps Module - SMF Singlemode 1550nm Wavelength for up to 80km

 This high-quality Generic 10GBASE-ZR XFP Compatible DOM transceiver module.  A cost-effective solution that provides high bandwidth and transmission rates over short distances. Each transceiver is 100% optically inspected and tested for compatability before shipping.





Product Features

  • 100% Optically Inspected and Tested to be compatible.
  • SMF, 1550nm, 80km, LC, DOM
  • 10GBASE-ZR XFP Optics
  • ROHS Compliant.





Product Specifications

Generic Compatible 10GBASE-ZR XFP
Vendor Name Fibertronics
Form Type XFP
Max Data Rate 11.1Gbps
Wavelength 1550nm
Distance 80km
Connector Interface LC Duplex
Optical Component type EML Laser 1550nm
Mode SMF Singlemode Fiber
Digital Optical Monitoring (DOM) Supported Yes
TX Power 0~5dBm
Receiver Sensitivity < -26dBm
Temperature Range -5 to 75°C (23 to 167°F)

Regulator Compliance

Fibertronics transceivers are Class 1 Laser Products comply with FDA regulations. Meet Class 1 eye safety requirements of EN 60825 and the electrical safety requirements of EN 60950.





Absolute Maximum Ratings



Parameter

Symbol



Unit

Supply Voltage

VCC

-0.5

4

V

Storage Temperature

TS

-40

85

°C

Operating Case Temperature

TC

-5

70

°C

Power Received Max

Pmax



-7

dBm





Recommended Operating Conditions



Parameter

Symbol



Typical



Unit

Operating Case Temperature

TC

-5



70

°C

Power Supply Voltage

VCC

3.15

3.3

3.45

V

Power Supply Current

ICC3





600

mA

Data Rate





10



GBps



Max Link Length on 9/125µm SMF



CLXFP1510GZR



Lmax







80



km













Optical Characteristics



Parameter

Symbol



Typical



Unit

Transmitter

Centre Wavelength

λc

1530

1550

1560

nm

Spectral Width (RMS)

σ





0.5

nm

Average Output Power

Pout

0



5

dBm

Extinction Ratio

ER

9





dB

Average Launch Power of Off

Transmitter

Poff





-30

dBm

Receiver

Centre Wavelength

λc

1270



1600

nm

Receiver Sensitivity

PIN





-26

dBm

Receiver Overload

Pmax

-7





dBm

LOS De-Assert

LOSD





-30

dBm

LOS Assert

LOSA

-37





dBm

LOS Hysteresis



0.5





dB







Elcetrical Characteristics



Parameter

Symbol



Typical



Unit

Transmitter

Input Differential Impedance

Zin

90

100

110

Ω

Data Input Swing Differential

Vin

200



700

mV

Tx-Dis Disable

Vd

2.0



Vcc

V

Tx-Dis Enable

Ven

0



0.8

V

Receiver

Data Output Swing Differential

Vout

300



800

mV

Rx-Los Fault

Vlf

-0.5



VccHOST

V

Rx-Los Normal

Vln

0



0+0.8

V

Output rise and fall time

Tr, Tf





38

ps





Pin Description





Pin

Symbol

Description



1

GND

Module Ground



2

VEE5

Optional Power Supply



3

Mod-Desel





4

Interrupt





5

Tx-Dis

Transmitter Disable



6

VCC5

+5V Power Supply



7

GND

Module Ground



8

VCC3

+3.3V Power Supply



9

VCC3

+3.3V Power Supply



10

SCL

Serial 2wire interface clock



11

SDA

Serial 2wire interface data line



12

Mod-Abs

Module Absent



13

Mod-NR

Module Not Ready



14

Rx-Los

Receiver Loss of Signal indicator



15

GND

Module Ground



16

GND

Module Ground



17

RD-

Receiver Inverted data output



18

RD+

Receiver non-Inverted data output



19

GND

Module Ground



20

VCC2

+1.8V Power Supply



21

P-Down/RST





22

VCC2

+1.8V Power Supply



23

GND

Module Ground



24

Ref CLK+





25

Ref CLK-





26

GND

Module Ground



27

GND

Module Ground



28

TD-

Transmitter Inverted data input



29

TD+

Transmitter non-Inverted data input



30

GND

Module Ground



Notes:

  • Circuit ground is internally isolated from chassis ground.
  • Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
  • Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V. MOD_DEF(0) pulls line low to indicate module is plugged in.
  • lOS is open collector output.    Should be pulled up with 4.7k -10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.
