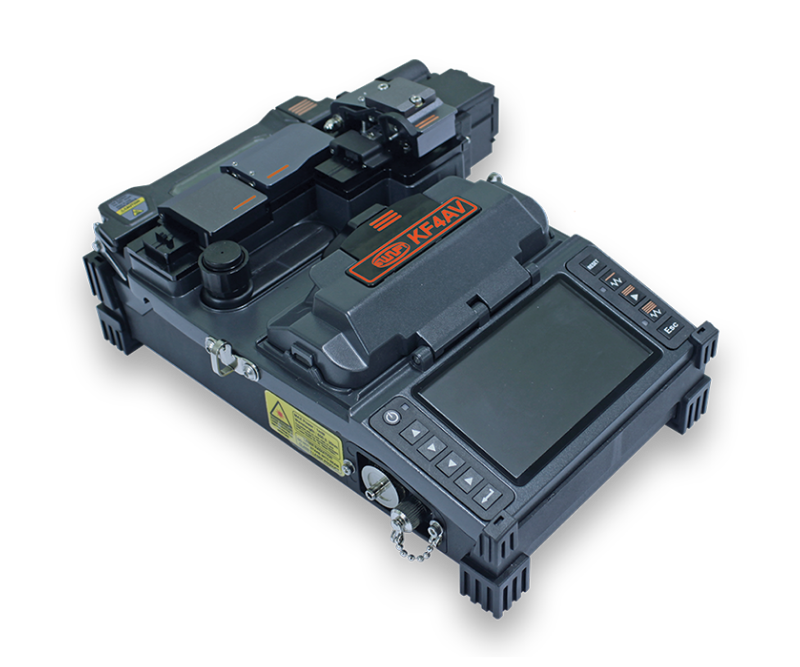

KF4AV All-In-One Active Cladding Alignment Fusion Splicer by UCLSwift - Includes Visual Fault Locator (VFL) Power Meter

The Swift KF4AV is a highly advanced, All-In-One active cladding alignment fusion splicer, designed to perform the major 5 functions systematically: stripping, cleaning, cleaving, splicing and protecting. The Swift KF4A is the best fit for fusion splicing and fusion splice-on connectors (SOC) of FTTx network applications. It eliminates fatal issues common with conventional mechanical connectors including low quality, weak durability and high maintenance costs. The Swift KF4AV fusion splicer coupled with our fusion splice-on connectors provides customers the best ROI.

Features & Specifications

• ROTATING BLADE LIFE UP TO 110,000
• Electrode Life up to 38,000
• Remote maintenance via Internet
• Integrated 5 functions in one unit (stripping, cleaning, cleaving, splicing, protecting)
• Internally-installed Visual Fault Locator (VFL) utilizes a 650nm red laser to locate and visibly display any failure points throughout the cable such as fiber breaks, flawed splices or connectors, and other issues
• Internally-installed InGaAs (indium, gallium, arsenide) power meter can detect the amount of power that is lost during transmission, helping potential errors to be corrected before the cable goes into use
• Operating Conditions: Altitude: 0~5,000m above sea level, Temperature: -14°F~122°F, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof
